About the Product

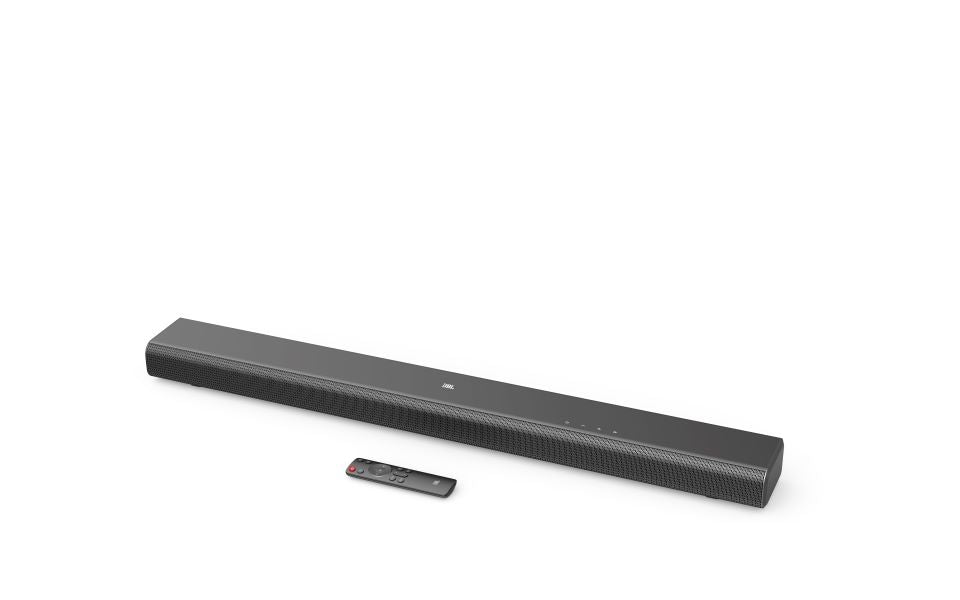

JBL CINEMA SB510 3.1 CHANNEL SOUNDBAR WITH A BUILT-IN SUBWOOFER

COMPACT SIZE. EPIC SOUND.

The JBL Cinema SB510 is a 3.1 channel all-in-one soundbar with a built-in subwoofer. It delivers 200 watts of powerful Dolby Audio with deep bass, all in a hassle-free, compact design that fits neatly into any room. A dedicated centre channel driver means TV and film dialogue is always crystal clear. Setup is easy using either one cable HDMI ARC or optical connections, and convenient Bluetooth connectivity means you can use it for wireless music streaming from any device.

Features and Benefits:

Dedicated center channel provides superior voice clarityA dedicated center channel delivers film and TV dialogue with amazing clarity. You'll never ask "What did they just say?" again.Built-in subwooferThe built-in subwoofer delivers deep bass without the need for another box or extra cables to clutter up your space.One cable connection with HDMI ARCThe one cable HDMI ARC connection allows for the simplest setup and a hassle-free user experience.Wireless music streaming via BluetoothStream and enjoy all your music wirelessly from any mobile device.Dolby Audio embeddedDelivers powerful sound that enhances any movie experience.Technical Specifications:General SpecificationsModel: CINEMA SB510Sound system: 3.1 channelPower supply: 100 - 240V AC, ~ 50/60HzTotal speaker power output (Max @THD 1%): 200WSoundbar output power (Max @THD 1%): 150WSubwoofer output power (Max. @THD 1%): 50WSoundbar transducer: 3x (45 x 80)mm racetrack driversSubwoofer transducer: 1x (70 x 88)mm, built-in subwooferStandby power: < 0.5WOperating temperature: 0 C - 45 CHDMI SpecificationHDMI ARC (Audio Return Channel): 1HDMI HDCP version: 1.4Audio SpecificationFrequency response: 55Hz-20kHz (-10dB)Audio inputs: 1 Optical, Bluetooth and USB (USB playback is available in US version. For other versions, USB is for Service only.)USB SpecificationUSB port: Type AUSB rating: 5V DC, 0.5ASupporting file formats: mp3MP3 codec: MPEG 1 Layer 2/3, MPEG 2 Layer 3, MPEG 2.5 Layer 3MP3 sampling rate: 16 - 48 kHzMP3 bitrate: MPEG 1 Layer 1: 32 kbps - 448 kbps; MPEG 1 Layer 2: 32 kbps - 384 kbps; MPEG 1 Layer3: 32 kbps - 320 kbps; MPEG 2/2.5 Layer 1: 32 kbps - 256 kbps; MPEG 2/2.5 Layer 2/3: 8 kbps - 160 kbpsWireless SpecificationBluetooth version: 5.3Bluetooth profile: A2DP 1.3, AVRCP 1.6Bluetooth transmitter frequency range: 2400 MHz - 2483.5 MHzBluetooth Max. transmitting power: <10 dBm (EIRP)Bluetooth modulation: GFSK, /4 DQPSK, 8DPSKWhat's in the boxJBL Cinema SB510 Soundbar with Build-In SubwooferRemote control with batteriesPower cables (up to 4pcs depending on region SKUs)HDMI cableWall-mount bracket kit with screwsQuick start guideWarranty cardSafety sheet
