About the Product

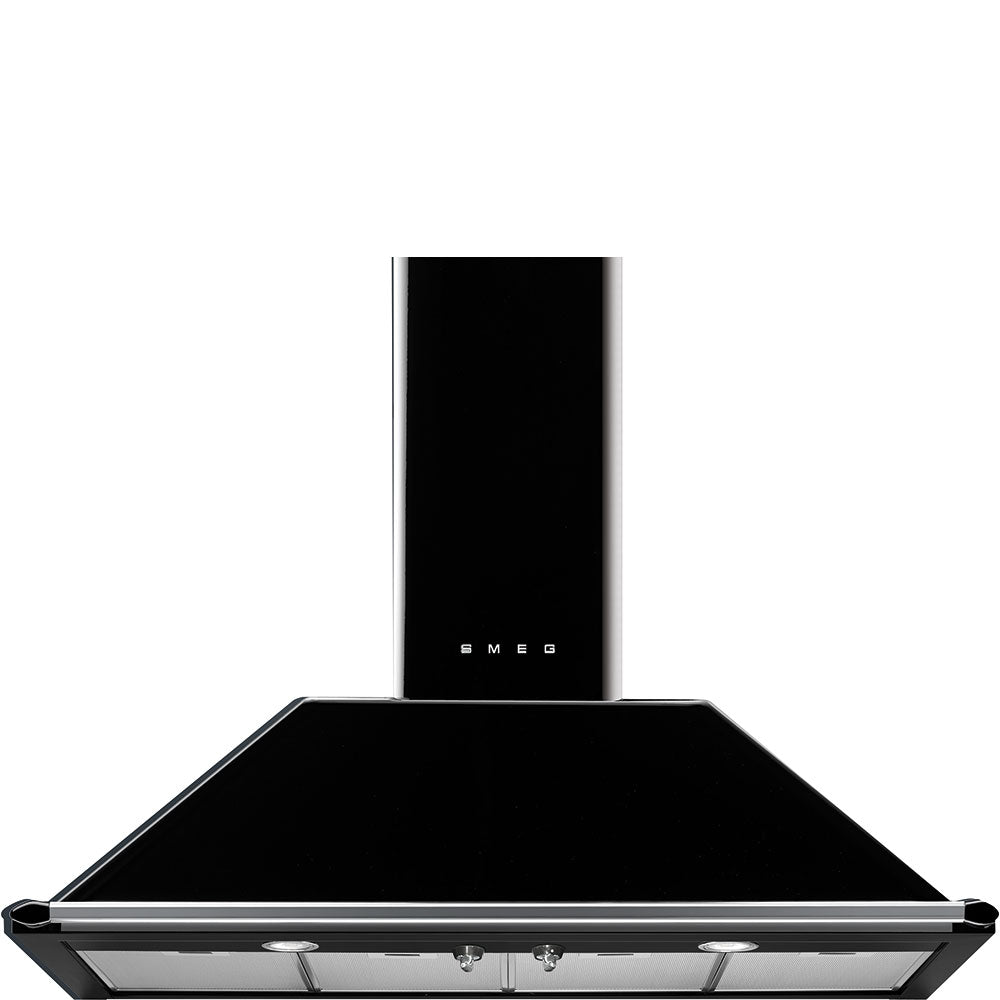

Hood - Victoria - KT110BLE

Product family - HoodHood Type - Decorative wall hoodAesthetics - VictoriaColour - BlackHood width - 110 cmEnergy efficicency class ( EEC) - A

TYPE

Product family: HoodHood Type: Decorative wall hoodHood width: 110 cmExtraction: ExtractionEAN code: 8017709211691

AESTHETICS

Colour: BlackFinishing: GlossyAesthetics: VictoriaDesign: ChimneyMaterial: Painted materialType of steel: Brushed

PROGRAMS / FUNCTIONS

No. of speeds: 3Intensive speed: Yes

CONTROLS

Control setting: Control knobsControl knobs: VictoriaNo. of controls: 2Controls colour: Steel effect

TECHNICAL FEATURES

No. of lights: 2Light type: LEDLight Power: 1 WLight color temperature scale (°K): 3000 °KFree outlet maximum capacity: 820 m³/hMotor power: 275 WNo. of filters: 4Anti-grease filters: AluminiumMinimum distance from GAS hob: 750 mmVent outlet: 150 mmMinimum distance from ELECTRIC hob: 650 mmNon return valve: Yes

PERFORMANCE / ENERGY LABEL

Energy efficicency class ( EEC): AFluid Dynamic Efficiency class (FDEC): AGrease Filtering Efficiency Class (GFEC): DLighting Efficiency Class (LEC): AAnnual Efficiency Consumption (AEChood): 57 kWh/aFluid Dynamic Efficiency (FDE): 31.1Lighting Efficiency (LE): 83.2 lux/WGrease Filtering Efficiency (GFE): 69.2 %Air flow at minumum speed (Qmin): 326 m³/hAir flow at maximum speed (Qmax): 554 m³/hAir flow at boost speed (Qboost): 784 m³/hAirbourne acouistical A-weighted sound Power Emission at minimum speed (SPEmin): 49 dB(A)Airborne acoustical A-weighted sound Power Emission at maximum speed (SPEmax): 63 dB(A)Airbourne acoustical A-weighted sound power emission at boost speed (SPEboost): 71 dB(A)Time increase factor (F): 1.00Energy Efficiency Index: 52.2Measured air flow rate at best efficiency point (Qbep): 413 m³/hMeasured air pressure at best efficiency point (Pbep): 456 PaMeasured electric power input at best efficiency point (Wbep): 168 WNominal Power consumption of the light system (WL): 2 WAverage illumination of the light on the cooking surface (Emiddle): 183 luxSound power level at highest setting (Lwa): 63 dB(A)

ELECTRICAL CONNECTION

Electrical connection rating: 278 WVoltage: 220-240 VFrequency (Hz): 50-60 HzPower supply cable length: 1000 mm

SPEED 1

Extraction rate IEC 61591: 326 m³/hNoise level IEC 60704-2-13: 49 dB(A)Power: 199 W

SPEED 2

Extraction rate IEC 61591: 439 m³/hNoise level IEC 60704-2-13: 57 dB(A)Power: 231 W

SPEED 3

Extraction rate IEC 61591: 554 m³/hNoise level IEC 60704-2-13: 63 dB(A)Power: 260 W

INTENSIVE SPEED

Extraction rate (IEC 61591): 784 m³/hNoise level IEC 60704-2-13: 71 dB(A)Power: 280 W

LOGISTIC INFORMATION

Dimensions of the product (mm): 900x1100x532Width: 1100 mmDepth (mm): 532 mmProduct Height (mm): 900 mmNet weight (kg): 18.000 kgGross weight (kg): 23.400 kg
