About the Product

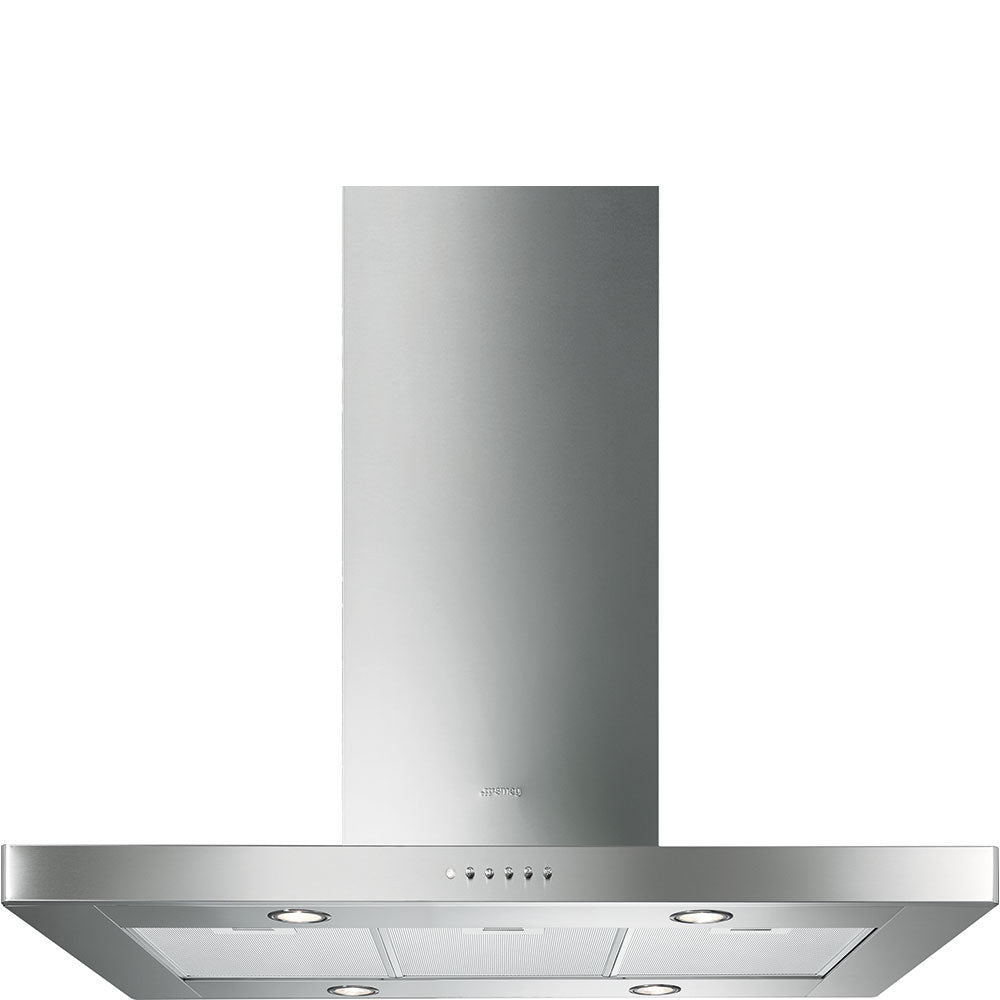

Decorative island hood - Universale Aesthetic

KI90XE

T-Shape island hood model 90 cm, with a contemporary design and elegant lines. It offers powerful and silent suction, adding a touch of style to the environment. Built with high-quality materials, it ensures long-lasting performance and a less odorous environment.

INTENSITIVE FUNCTION

The intensive function allows to operate the hood at maximum power, to speed up the elimination of the most persistent odors and to have a purified environment.

ELECTRONIC CONTROLS

Ergonomic and functional, the controls of the Smeg hoods are designed to allow easy and immediate use. The top-of-the-range models feature Touch Control commands, which can be activated with a simple and safe touch.

AESTHETICS

Colour:Stainless steelFinishing:SatinAesthetic:UniversaleDesign:T flatMaterial:Stainless steelType of steel:Brushed

PROGRAM / FUNCTIONS

No. of speeds:3Intensive speed:YesTime-setting options:Automatic switch-off

TYPE

Product family:HoodHood Type:Decorative island hoodExtraction:ExtractionElectronic control:YesEAN code:8017709204044

TECHNICAL FEATURES

No. of lights:4Light type:LEDLight Power:1 WLight color temperature scale (°K):4000°KFree outlet maximum capacity:820 m³/hMotor power:275 WNo. of filters:3Anti-grease filters:AluminiumFilter replacement indicator:YesMinimum distance from GAS hob:750 mmMinimum distance from ELECTRIC hob:650 mmVent outlet:150 mmNon return valve:Yes

CONTROLS

Control setting:Electronic buttonsLed color:White

PERFORMANCE / ENERGY LABEL

Energy efficicency class ( EEC):BFluid Dynamic Efficiency class (FDEC):BGrease Filtering Efficiency Class (GFEC):CLighting Efficiency Class (LEC):AAnnual Efficiency Consumption (AEChood):66 kWh/aFluid Dynamic Efficiency (FDE):27.4Lighting Efficiency (LE):88.6 lux/WGrease Filtering Efficiency (GFE):83.1 %Air flow at minumum speed (Qmin):311 m³/hAir flow at maximum speed (Qmax):533 m³/hAir flow at boost speed (Qboost):740 m³/hAirbourne acouistical A-weighted sound Power Emission at minimum speed (SPEmin):49 dBAAirborne acoustical A-weighted sound Power Emission at maximum speed (SPEmax):63 dBAAirbourne acoustical A-weighted sound power emission at boost speed (SPEboost):71 dBAEnergy Efficiency Index:58.8Measured air flow rate at best efficiency point (Qbep):390 m³/hMeasured air pressure at best efficiency point (Pbep):451 PaMeasured electric power input at best efficiency point (Wbep):171 WNominal Power consumption of the light system (WL):4 WAverage illumination of the light on the cooking surface (Emiddle):390 luxSound power level at highest setting (Lwa):63 dBA

ELECTRICAL CONNECTION

Plug:Not presentElectrical connection rating:279 WVoltage:220-240 VFrequency (Hz):50-60 HzPower supply cable length:1500 mm

STANDBY CONSUMPTION

Power consumption in stand-by mode (Ps):0.49 W

SPEED 1

Extraction rate IEC 61591:311 m³/hNoise level IEC 60704-2-13:49 dBAPower:203 W

SPEED 2

Extraction rate IEC 61591:385 m³/hNoise level IEC 60704-2-13:59 dBAPower:240 W

SPEED 3

Extraction rate IEC 61591:533 m³/hNoise level IEC 60704-2-13:63 dBAPower:248 W

INTENSIVE SPEED

Extraction rate (IEC 61591):740 m³/hNoise level IEC 60704-2-13:71 dBAPower:276 W

LOGISTIC INFORMATION

Dimensions of the product (mm):880x900x600Width:900 mmDepth (mm):600 mmProduct Height (mm):880 mmNet weight (kg):27.100 kgGross weight (kg):36.400 kgPacked width:1140 mmPackaged depth:740 mmHeight (mm) packed:460 mmDimensions of the packed product (mm):460X1140X740Type of packaging:CardboardPackaging composition - paper & cardboard (kg):4.800 kgPackaging composition - polystyrene (kg):0.480 kgPackaging composition - wood (kg):0.000 kgPackaging composition - plastic (kg):0.238 kg

ACCESSORIES INCLUDED

Tube reduction:Yes
