About the Product

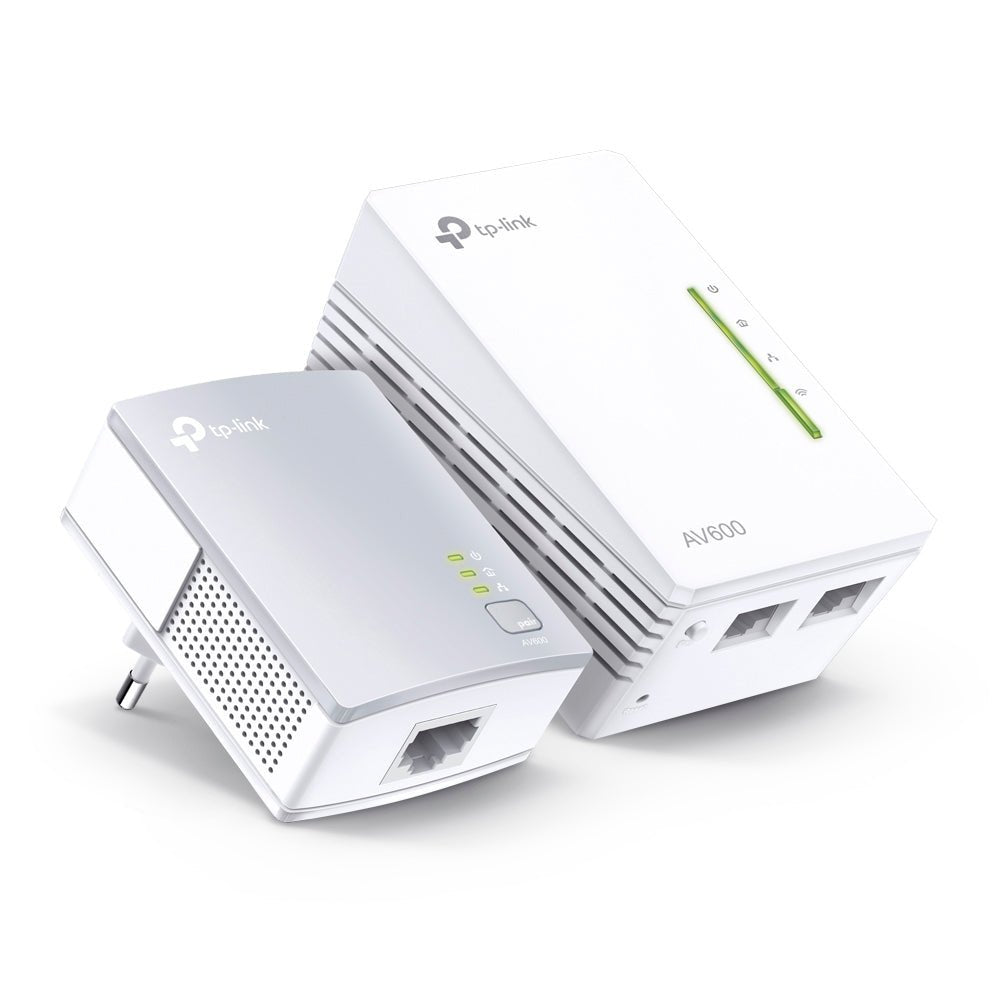

TL-WPA4221 KIT

300Mbps AV600 Wi-Fi Powerline Extender Starter Kit

• HomePlug AV standard providing up to 600Mbps¹ high speed data transmission over a homes existing electrical wiring, ideal for lag-free HD or 3D video streaming and online gaming
• Extend 300Mbps wireless connections to previously hard-to-reach areas of your home and office
• One Touch Super Range Extension - Wi-Fi Clone Button simplifies your Wi-Fi configuration and helps build a seamless unified home network
• Play&Play with no configuration required

Wired or Wireless？Why not Both!Meet an Excellent Home Network Solution

300Mbps AV600 Wi-Fi Powerline
Extender Starter Kit

Wi-Fi Auto-Sync forUnified Wi-Fi Network

Wi-Fi Auto-Sync creates a simple, intuitive powerline experience. Pressing the Wi-Fi Clone button instantly copies your network name and password from your router for easy setup. Wi-Fi Move automatically applies any settings changes across the network. Your existing Wi-Fi settings will be synchronized to the new extender automatically.

Extend Your Powerline Network to Any Room

Based on the Powerline technology, your network extension is never limited to the primary coverage of your router. With advanced HomePlug AV2, TL-WPA4221 KIT is perfect for providing stable, high-speed data transfer rates of up to 600 Mbps on a line length of up to 300 meters, bring network to anywhere there is a power outlet.

Plug and Play!

Plug the TL-PA4010 in the wall and connect it to the router with an Ethernet cable. Then plug the TL-WPA4220 in any desired power outlet. There you go! Just enjoy the seamless, high speed wired and wireless network.Press the €œPair€ buttons on both adapters to create a more secure network.＊ Powerline adapters need to be connected to the same electrical circuit.

Powerline Management on Your Smartphone

The tpPLC Utility and tpPLC app make it easy to control wireless network settings, set schedules for Wi-Fi availability and even control the LED indicators on your adapters from any iOS or Android device. You can download the tpPLC app for iOS and Android devices. You can download the intuitive new tpPLC Utility for your PC at www.tp-link.com/en.*1. The theoretical maximum channel data transfer rate is derived from HomePlug AV specifications. Actual data transfer rate will vary from network environment including: distance, network traffic, noise on electrical wires, building material and construction, quality of electrical installation and other adverse conditions.*2. Compatible with all HomePlug AV and AV2 Standard Powerline adapters. This product may not be compatible with routers or gateways with firmware that has been altered, is based on open source programs, or are non-standard or outdated.*3. Maximum wireless signal rates are the physical rates derived from IEEE Standard 802.11 specifications. Actual wireless data throughput and wireless coverage are not guaranteed and will vary as a result of 1) environmental factors, including building materials, physical objects, and obstacles, 2) network conditions, including local interference, volume and density of traffic, product location, network complexity, and network overhead, and 3) client limitations, including rated performance, location, connection, quality, and client condition.

HARDWARE FEATURES
Plug Type	EU, AU
Standards and Protocols	HomePlug AV, IEEE802.3, IEEE802.3u, IEEE802.11b/g/n
Interface	2*10/100Mbps Ethernet Port
Button	Pair, Reset, Wi-Fi/Wi-Fi Clone
Power Consumption	TL-WPA4220: Maximum: 5.6W, Typical: 5.2WTL-PA4010: Maximum: 2.6W, Typical: 2.3W
LED Indicator	PWR, PLC, ETH, Wi-Fi/Wi-Fi Clone
Dimensions ( W x D x H )	TL-WPA4220: 2.1 x 1.6 x 3.7 in. (54 × 40 × 94 mm)TL-PA4010: 2.0 × 1.1 × 2.6 in. (52 × 28.5 × 65 mm)
Range	300 Meters over electrical circuit

WIRELESS FEATURES
Frequency	2.4-2.4835GHz
Signal Rate	11n: Up to 300Mbps(dynamic)11g: Up to 54Mbps(dynamic)11b: Up to 11Mbps(dynamic)
Reception Sensitivity	270M: -68dBm@10% PER130M: -68dBm@10% PER108M: -68dBm@10% PER54M: -68dBm@10% PER11M: -85dBm@8% PER6M: -88dBm@10% PER1M: -90dBm@8% PER
Transmit Power	CE:<20dBm(2.4GHz)FCC:<30dBm
Wireless Security	64/128-bit WEP / WPA / WPA2,WPA-PSK / WPA2-PSK
Advanced Functions	Enable/DisableWireless Radio,WMM, Wireless Statistics

SOFTWARE FEATURES
Modulation Technology	OFDM (PLC)
Encryption	Powerline Security:128-bit AESWireless Security:WEP, WPA/WPA2, WPA-PSK/WPA2-PSK Encryption

OTHERS
Certification	CE, FCC, RoHS
Package Contents	Powerline Ethernet Adapter TL-WPA4220 & TL-PA40102 * 6.5 ft. (2 m) Ethernet cable (RJ45)Quick Installation Guide
System Requirements	Windows 10/8.1/8/7/Vista/XP, Mac OS, Linux
Environment	Operating Temperature: 0°C~40°C (32°F ~104°F)Storage Temperature: -40°C~70°C (-40°F ~158°F)Operating Humidity: 10%~90% non-condensingStorage Humidity: 5%~90% non-condensing
